Product introduction

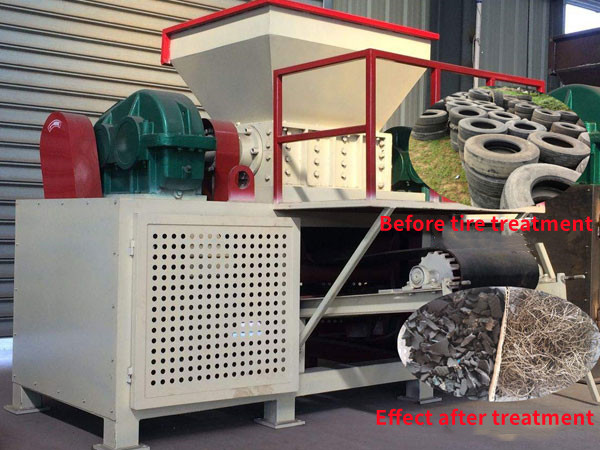

Tire shredder is a crushing equipment specially designed for tires with large volume, thickness and hardness. It can effectively shred rubber tires, bias tires, radial tires and automobile tires. Tires can be shredded through the grinding machine equipment, ground into powder, for reprocessing. The tire shredder can directly break any steel wire tire with a diameter of less than 2000mm without any prior treatment of the tire, and the steel wire can be directly broken for the rim. Greatly improve the production efficiency, but also save labor.
Tire shredder adopts dual shaft independent drive, so that in the production, the material produces the corresponding pressure, to achieve the automatic feeding function, unique tool shaft structure and rotary tool, in the production process of low speed and high torque, there will be no winding, or stuck equipment phenomenon. This series of tire shredder adopts microcomputer (PC) automatic control, set up start, stop, reverse and overload automatic reverse control function, with low speed, large torque, low noise and other characteristics, bearing seat adopts split type, disassembly and tool change is easy and convenient for shredding large, extra thick difficult to break materials.

Application field

1. sports field laying: running track, sports field, swimming pool around and garden path, bowling alley, sidewalk, kindergarten sports field and casino, tennis and basketball court.
2. automotive industry: belt, train floor MATS, brake disc ribbon, car and truck floor, brake bushings, seals, buffers, shock absorbers, car body bottom seal and stainless steel materials, anti-splash and soil, Marine daily raw materials, tires and tire pads.
3. Construction/Equipment: Adhesives/sealants, companies, bathroom floors, insulating materials, carpet liners, livestock MATS, extrusion products, waste brake surfaces, casting products, coatings, DAMS, warehouses, ponds, waste disposal stations, brick roof liners and coverings, raised flooring, roof signs, sheeting, waterproof materials, shock-proof, gaskets, waterproof materials for roofs and walls.
4. the application of geotechnical/asphalt: drainage pipes, asphalt treated with rubber for road and lane laying, filters, soil conditioning/road cover, porous flushing pipe, horse racing track, railway crossing, traffic/sidewalk obstacles, railway cracks joint sealant road construction and maintenance of shipping
5. production of recycled rubber: used to produce a variety of rubber products.

Fineness application

8 ~ 20 items: mainly used in runway, road cushion, cushion plate, lawn, pavement elastic layer, sports ground pavement, etc.
30 ~ 40 mesh: mainly used in the production of recycled rubber, modified rubber powder, paving, production of rubber plate, etc.
40 ~ 60 mesh: called fine rubber powder, used in rubber product filling, plastic modification, etc.
60 ~ 80 mesh: called fine rubber powder, mainly used in automobile tires, rubber products, building materials, etc.

Structural principle

A set of tire crusher production line at room temperature to deal with waste tires and waste rubber, equipment equipped with wind and water cooling system, micro dust removal device, atomization spray system, in addition to the user's special raw materials with independent dust removal and fiber removal equipment.

Safety rule

1. After starting, when the machine reaches normal operation,  is allowed to feed crops uniformly and continuously.
2. the operation should pay attention to the motor speed,  sound and bearing temperature.
3. When feeding, the operator should stand on the side of the feeding mouth, the sleeves of the clothes should be tied tightly, and the mask and work cap should be worn.
4. When feeding, pay attention to whether there are hard objects such as stones, sickles,  tool screws and so on in the input, so as not to damage the machine and cause personal accidents.
5. the machine is not allowed to hang belt, oil, cleaning and troubleshooting.
6. found the following problems should be shut down the engine, shut down treatment, ① motor smoke, ② blockage, ③ grinding quality is not good,④ bearing overheating, more than 60 degrees.
